ELECTRA 24KW - 3250 PUMP - WALL (04) - D12

Code: ELE003

The 24kW Electra is a locally manufactured stainless steel wall-mounted unit with a genuine 3250 Kranzle motor and pump and 24kW heating. Operating at 200 bar pressure with a 13l/minute water flow, it runs on a reliable 400V (40A) supply and a 1400 rpm motor, ensuring durability for prolonged cleaning. Equipped with a water tank featuring low-level water cut out for added motor and pump protection. Supplied with 10m hose, gun and standard lance.

Contact Us

Exclusive trade customer access

Register now to access over 1,000 products.

Login/Register

Locate Kränzle Dealerships

Description

Description

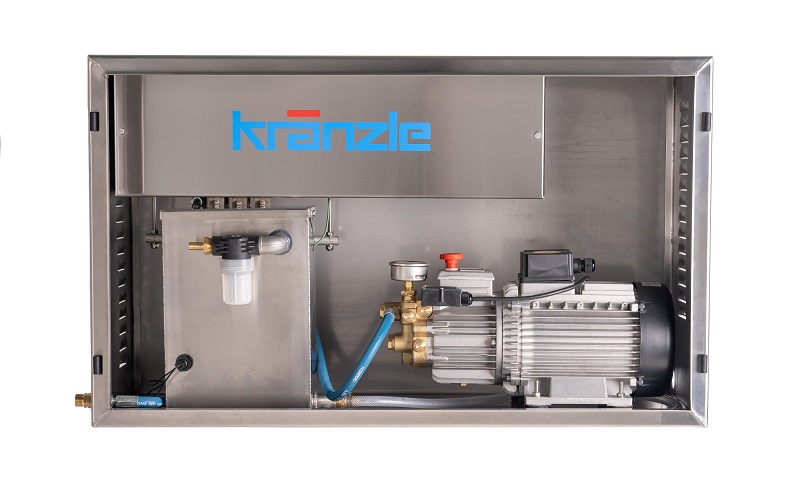

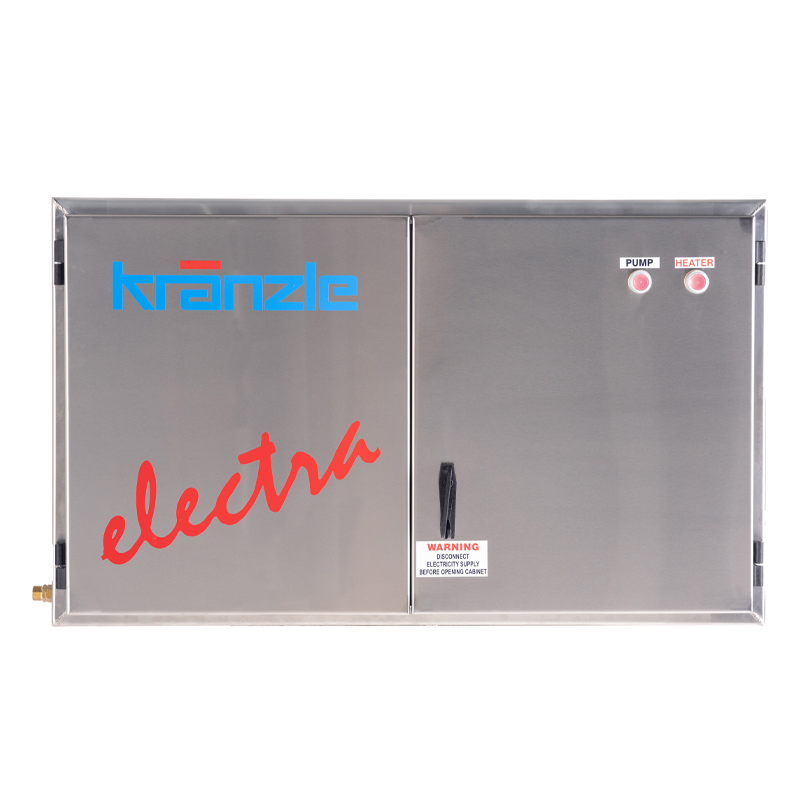

KRÄNZLE ELECTRA 24KW WALL-MOUNTED HOT WATER HIGH PRESSURE CLEANER

The Kränzle Electra 24kW with a Kränzle 3250 high pressure pump is available in a wall-mounted version hot water high pressure cleaner, with the heating ability of 24kW and with pressure ratings between 30 - 200 bar supplying high pressure hot water at temperatures from 60°C.

As one finds with fuel-heated machines, there are no fumes which makes the Electra especially suited for indoor use, in food preparation plants, wine cellars and where contamination of product or staff is sensitive.

The wall-mounted version is the preferred option in food factories and plants as it eliminates the need to move machines and hoses across the production floor. This is an important benefit with regards to occupational health and safety and the lockable cabinet eliminates potential tampering with controls and settings.

Features and Benefits:

  • Water tank with a low level cut out
  • Current overload protection
  • Shock-absorbing buffers
  • Brass pump head
  • Ceramic-coated stainless steel pump pistons
  • Continuously adjustable pressure control
  • Dry-run safety
  • Total-stop system with delayed motor cut-out

Enquire For Product Demonstration:

Contact us directly to enquire about a demo or find your nearest Kranzle Dealer.

Specifications

Specifications

  • Operating pressure  200 bar
  • Water output  13 l/min
  • Admissable overpressure  220 bar
  • Motor speed 1400 r.p.m
  • Connection 400V
  • Power intake 7.5kW
  • Heating elements 24kW
  • Max. temperature on exit 60 ℃
  • Dimensions 375mm | 360mm | 900mm
  • Weight 39kg

Included In

Included In

  • Hose reel  Optional
  • High pressure hose  10m
  • Trigger gun with safety catch  Starlet 3 | 12500
  • Stainless steel lance - flat-jet nozzle  04 nozzle
  • Lance with Turbokiller Optional
