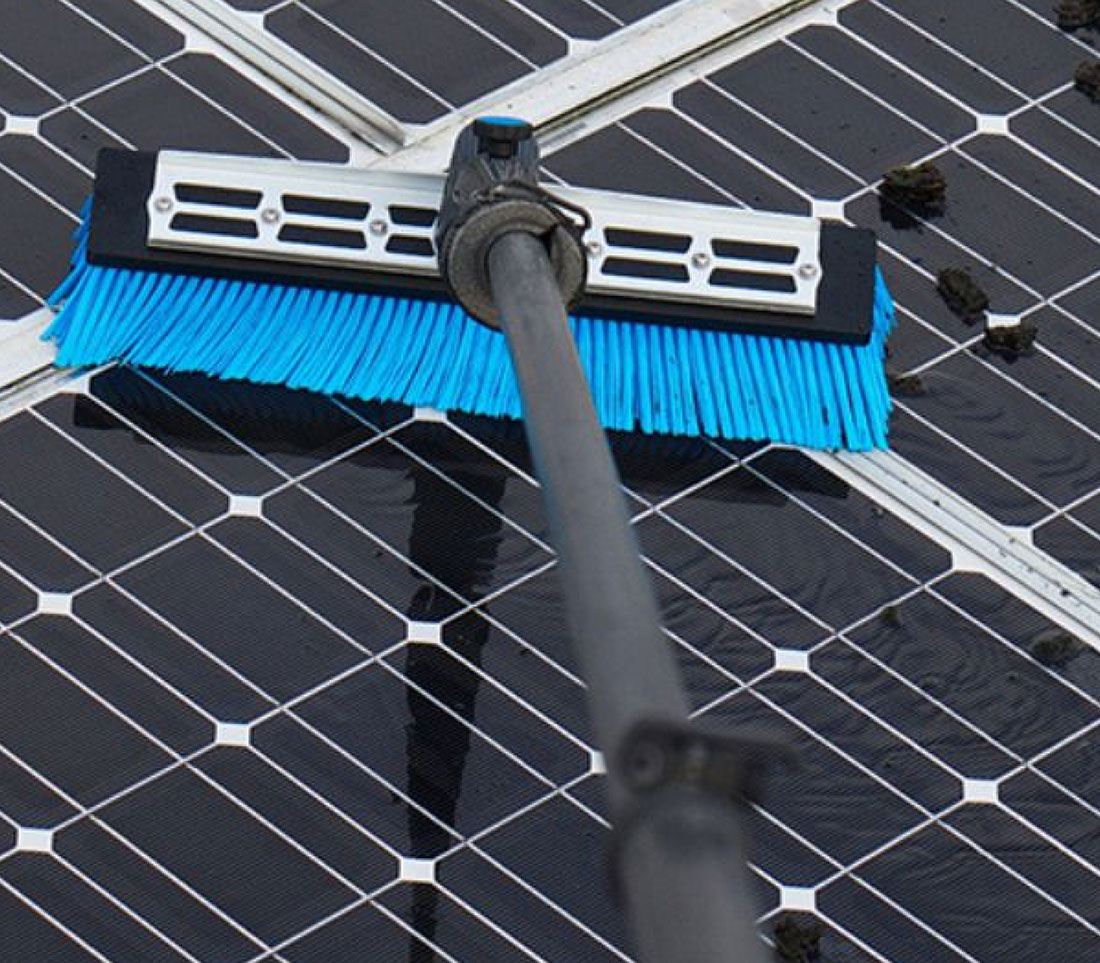

Solar Panel Cleaning Equipment

Solar cleaning kit designed specifically for the cleaning of domestic solar panels and PV systems.

The solar modular poles from Sola Tecs are a plug-connect system with great strength and low-weight. It is the best choice for all those requiring a pole system for all types of cleaning with the solar cleaning brush. Weighing 520 grams, full-carbon modular poles are extremely light, strong and modular. Connecting the SOLA Brush 400 to the pole requires a solar gooseneck for the modular pole.

The Solar gooseneck for modular pole is made from robust, light aluminium and designed for quick and easy assembly, with a quick-release screw fixing. The resulting contact pressure on the brushes also has a positive effect on the cleaning results.

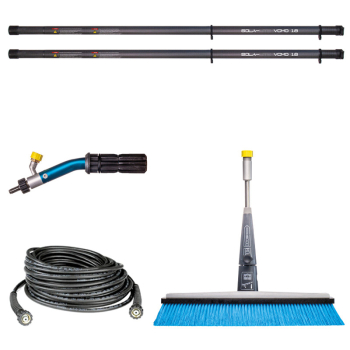

SOLAR MODULAR 2-POLE KIT - DOMESTIC Includes:

• 2x SOLAR MODULAR POLE SOLA-LITE VCMO 1.8M
• 1x SOLAR GOOSENECK FOR MODULAR POLE
• 1x SOLAR SOLA BRUSH 400
• 1x SOLAR HP HOSE 25M FOR MODULAR POLE - M22/M22

Please note: This system requires a high pressure cleaner. Any pressure washer can be used.

SOLAR SOLA BRUSH 400

• Operating pressure  210 bar
• Temperature  60 °C
• Width  400mm
• Weight 1.5 kg
• Connection M22 x 1,5 AG

SOLAR MODULAR POLE SOLA-LITE VCMO 1.8M

• Length min.  1.8m
• Length max.  5.4m
• Weight/pole  520g
• Material Full carbon

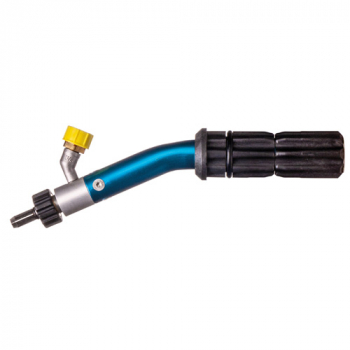

SOLAR GOOSENECK FOR MODULAR POLE

• Weight  500 g
• Angle  30°
• Material  Aluminium

SOLAR HP HOSE 25M FOR MODULAR POLE - M22/M22

• Max. operating pressure  210 bar
• Temperature  150° C
• Length  25m
• Diameter DN 8
• Connection M22 x 1,5 IG
• Outlet M22 x 1,5 IG

• 1x  SOLAR SOLA BRUSH 400
• 2x  SOLAR MODULAR POLE SOLA-LITE VCMO 1.8M
• 1x  SOLAR GOOSENECK FOR MODULAR POLE
• 1x SOLAR HP HOSE 25M FOR MODULAR POLE - M22/M22

The Solar cleaning kit with a 12m telescopic pole set and SOLA-TECS C800 brush is an advanced technology cleaning system designed for cleaning commercial solar panels and PV systems.

The 12m fully carbon fibre telescopic pole gives you a long cleaning range which you often find in commercial installations, this allows for the most efficient cleaning time. Along with the SOLA-TECS C800 cleaning brush, it gives you the best cleaning results with an 820mm width, it also has a motorless driven brush powered by the water fed from the high pressure cleaner.

Included in the kit is a Splash Guard C800 for attaching to the C800 solar cleaning brush, this minimizes splash back on to the cleaned surfaces and onto the user cleaning.

This kit is the most popular for companies wanting to maximise efficient cleaning results with approximately 300m² per hour.

It is advised to use a water filtration system, this ensures that no water marks are left on the solar panels after cleaning as we advise not using detergent when cleaning panels.

Please note: A high pressure cleaner is required to operate the system, with a water flow rate of 11 l/min and 130 bar pressure to feed the brush with optimum amount of water and pressure to turn the motorless brush.

SOLAR PANEL CLEANING BRUSH - C800

• Area capacity  300 m²/h
• Operating pressure  100 - 120 bar
• Weight  4.33 kg
• Temperature 40 °C
• Water consumption 5 - 10 l/min
• Diameter 160 mm
• Width 820mm

SOLAR TELESCOPIC LANCE SET - CARBON 12M

• Length min.  2.1 m
• Length max.  12 m
• Weight  2.8 kg
• Material Full carbon
• Connection M22 x 1,5

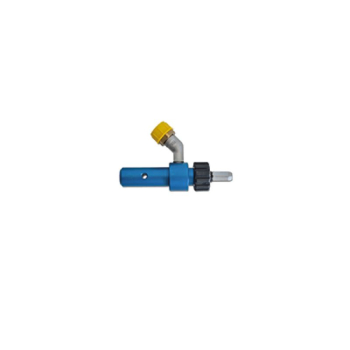

SOLAR GOOSENECK FOR TELESCOPIC POLE

• Weight  400 g
• Angle  30°
• Weight  3.5 kg
• Material Aluminium

SOLAR PANEL BRUSH SPLASH GUARD - C800 Back

• Width  820 mm

• 1x  SOLAR PANEL CLEANING BRUSH - C800
• 1x  SOLAR TELESCOPIC LANCE SET - CARBON 12M
• 1x  SOLAR GOOSENECK FOR TELESCOPIC POLE
• 1x SOLAR HP HOSE 25M FOR TELE POLE - M22/M22
• 1x SOLAR SLIDE BRUSH SET(TELESCOPIC POLE)
• 1x SOLAR ADAPTER UNGER HIFLO CARBON SET
• 1x SOLAR PANEL BRUSH SPLASH GUARD - C800

SOLA-TECS C600 SOLAR PANEL CLEANING BRUSH

The Sola-Tecs C600 solar panel cleaning brush is used for cleaning solar panels and photovoltaic systems efficiently and effectively. This is the professional solution for cleaning solar panels, having motorless technology installed the brush is operated by the high pressure cleaner system, from the water being pushed through. With the compact design and low weight pressure on the solar panels, this is a great option for any solar panel cleaning contractor looking for an efficient cleaning solution. We do advise on using a water filtration system, this ensures that no water marks are left on the solar panel after cleaning, this is because we are not using any detergent on the solar panels as this will leave a residue left on the panels after cleaning.

The system is attached to either a modular or telescopic lance with the respective fitting for each.

Application Areas:

• Solar panel cleaning or photovoltaic system cleaning
• Window cleaning;

Compatible With:

• Kränzle HD 7/122 TS
• Kränzle HD 11/130 TS

• Area capacity  250 m²/h
• Operating pressure  100 - 120 bar
• Weight  3.7 kg
• Temperature 40 °C
• Water consumption 5 - 10 l/min
• Diameter 160 mm
• Width 620mm

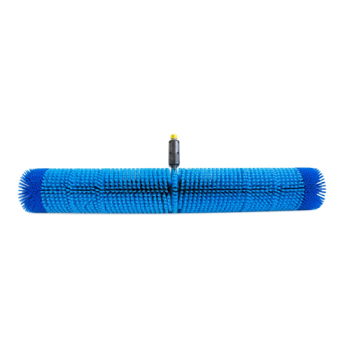

SOLA-TECS C1000 SOLAR PANEL CLEANING BRUSH

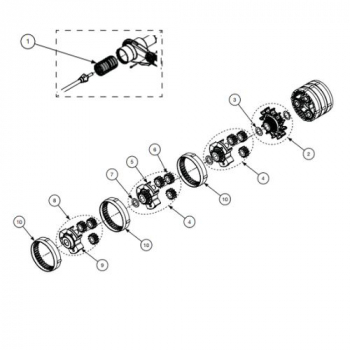

*NEW AND IMPROVED GEAR SYSTEM*

The Sola-Tecs C1000 solar panel cleaning brush is used for cleaning solar panels and photovoltaic systems efficiently and effectively. This is the professional solution for cleaning solar panels, having motorless technology installed the brush is operated by the high pressure cleaner system, from the water being pushed through. With the compact design and low weight pressure on the solar panels, this is a great option for any solar panel cleaning contractor looking for an efficient cleaning solution.

We do advise using a water filtration system, this ensures that no water marks are left on the solar panel after cleaning, this is because we are not using any detergent on the solar panels as this will leave a residue left on the panels after cleaning.

The system is attached to either a modular or telescopic lance with the respective fitting for each.

The Sola-tecs c1000 system has a cleaning width of 1020 mm which makes it the perfect fit for industrial and commercial solar panel cleaners.  The system is connected to either a telescopic lance or modular pole depending on the application of cleaning, if the solar panels are on a rooftop we advise using the telescopic pole and if the solar panels are on a carport we advise on a modular pole.

The possibilities are endless with the solar panel cleaning system as this is an investment that will pay off, with owners of solar panels needing to be cleaned once every few months due to dirt and grime baking onto the solar panels losing them a 3 - 30% energy produced.

Application Areas:

• Solar panel cleaning or photovoltaic system cleaning
• Window cleaning

Compatible With:

• Kränzle HD 11/130 TS
• Kränzle Quadro 599 TST
• Kranzle Torx B13/150
• Kranzle Honda B13/150

• Area capacity  350 m²/h
• Operating pressure  100 - 120 bar
• Weight  4.954 kg
• Temperature 40 °C
• Water consumption 5 - 10 l/min
• Diameter 160 mm
• Width 1020mm

SOLAR PANEL BRUSH SPLASH GUARD - C600

The solar panel brush splash guard - C600 ensures that you also stay dry when cleaning and the water is targeted at washing away loosened dirt. Optimized splash guard with easy quick-snap-fastening.

• Width  620 mm

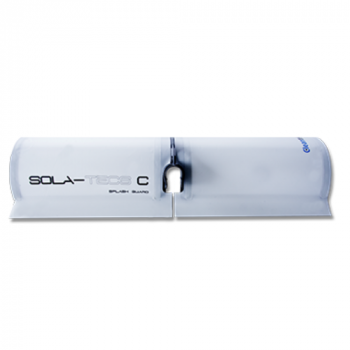

SOLAR PANEL BRUSH SPLASH GUARD - C1000

The solar panel brush splash guard - C1000 ensures that you also stay dry when cleaning and the water is targeted at washing away loosened dirt. Optimized splash guard with easy quick-snap-fastening.

• Width  1020 mm

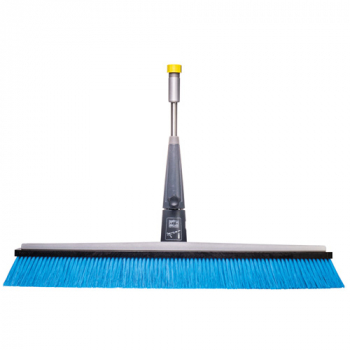

SOLA BRUSH 580MM SOLAR CLEANING BRUSH

The Sola-Brush 580mm was specifically developed for PV and solar panel cleaning. The optimal hardness of the bristles and high pressure nozzle ensures the best possible removal of dirt and moss in the frame area of the solar panel. The nozzles spray directly onto the soiled surface. Ergonomic operating and optimal application of the brush are individually adjusted using the adjustable angle joint. It is the perfect complement to the Sola-Tecs C solar cleaning brush and can be replaced in just a few seconds. The Sola-Brush 580. This brush is also able to reach difficult areas.

Application Areas:

• Solar Panel Cleaning
• Window cleaning

Compatible With:

• Kränzle HD 7/122 TS
• Kränzle HD 11/130 TS

• Operating pressure  210 bar
• Temperature  60 °C
• Width  580mm
• Weight 2 kg
• Connection M22 x 1,5 AG

SOLAR TELESCOPIC LANCE SET - CARBON 15M

The very long range of our SOLA-LITE pole systems of up to 15 m ensures that you can safely reach every point of your PV system. We use carbon fibre poles exclusively since they are far lighter than other materials in direct comparison, and therefore bend the least. Maximum stability for your own safety.

Our telescopic lances have an interior high-pressure hose with a length of 25 m. A rubber foot at the end of the telescopic wand serves to prevent damage to the tube and the wand. Telescopic lances are available in two sizes.

To increase the contact pressure of the SOLA-TECS C, we offer a gooseneck for telescopic lance. The experienced user can increase their productivity even more with our swivel joint, which can be used to control the SOLA-TECS C horizontally during cleaning.

• Length min.  2.3 m
• Length max.  15 m
• Weight  3.5 kg
• Material Full carbon
• Connection M22 x 1,5

• HP tube 25 m (DN 6)  incl.

SOLAR MODULAR POLE SOLA-LITE VCMO 1.8M

This is a plug-connect systems appreciate the advantages provides great strength and low weight. The modular pole satisfies both of these requirements to 100%. In conjunction with the conical joint and protective caps on every element, the MODULAR system represents the final stage in the development of plug-connect poles and is clearly superior to other systems on the market.

It is the best choice for all those requiring a pole system for all types of professional work and who prefer to use plug-connect systems. Weighing 520 grams, full-carbon modular poles are extremely light, strong and modular.

PLEASE NOTE: To connect a SOLA-TECS C with the modular pole, you will require a solar gooseneck for modular pole with an external water supply and a DN 6 high-pressure hose. Experienced users can use the solar swivel joint.

• Length min.  1.8m
• Length max.  1.8m
• Weight  520g
• Material Full carbon

• HP tube 25 m (DN 6)  No
• Gooseneck  No
• Transport bag  No

SOLAR MODULAR POLE SOLA-LITE VCMO SET (8 x 1.8M)

This is a plug-connect systems appreciate the advantages provides great strength and low weight. The modular pole satisfies both of these requirements to 100%. In conjunction with the conical joint and protective caps on every element, the MODULAR system represents the final stage in the development of plug-connect poles and is clearly superior to other systems on the market.

It is the best choice for all those requiring a pole system for all types of professional work and who prefer to use plug-connect systems. Weighing 520 grams, full-carbon modular poles are extremely light, strong and modular.

PLEASE NOTE: To connect a SOLA-TECS C with the modular pole, you will require a solar gooseneck for modular pole with an external water supply and a DN 6 high-pressure hose. Experienced users can use the solar swivel joint.

• Length min.  1.8m
• Length max.  1.8m
• Weight  520g - 4.5kg
• Material Full carbon

• HP tube 25 m (DN 6)  incl.
• Gooseneck  incl.
• Transport bag  incl.

SOLAR SWIVEL JOINT

The SOLA-TECS C can be easily controlled using a swivel joint. When the rod is turned, the direction of the brush also changes as a result. This has the advantage of being transported laterally from module to module, without a great amount of effort. Therefore, maintenance walkways can be bypassed without any problems.

When cleaning the edge of the roof, there is always a danger that the brush goes over the edge of the roof and can only be pulled back up again with great difficulty. With the brush’s slanted position you can now safely clean whilst overlapping.

• Operating pressure  140 bar
• Temperature  60 °C
• Connection  M 22x1,5 AG
• Outlet M 22x1,5 IG

The locally manufactured Waterstop for the SOLA-TECS C, allows for the user to control the water inflow at any time via the ball valve. The waterstop is inserted between the SOLA-TECS C solar panel cleaning brush and the gooseneck lance bend.

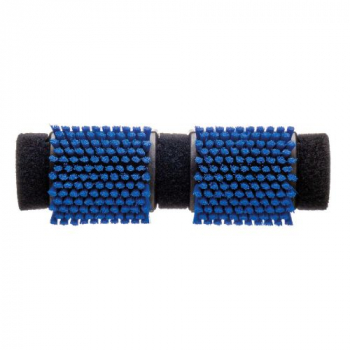

SOLAR SLIDE BRUSH SET (TELESCOPIC POLE)

In this regard, we offer slide brushes for SOLA-LITE telescopic lances. They come in a pack of three. These are put on telescopic lances to protect the PV modules underneath in the event of large reaches (and a rod that has slightly sagged).

• Weight  500g
• Length x Width  150 x 45 mm
• Material  Plastic

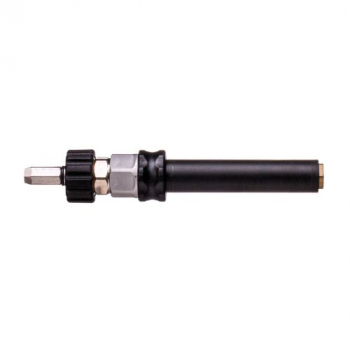

SOLAR ADAPTER SET - HIFLO

If you already got a HIFLO pole system and would like to use the SOLA-TECS C this adapter allows seamless adaption between the two.

Adapter for UNGER - HiFlo Advance / CarbonTec Telescopic. Plug-in diameter: 22 mm

• Weight  250g
• Connection  M22 IG / G 1/8" AG

• SOLAR ADAPTER SET - HIFLO  X1
• high-pressure hose DN 6, 25 m  X1

SOLAR ADAPTER SET - CARBONTEC

If you already have a pole system and want to use it with the SOLA-TECS C, no problem - this connector connects the solar cleaning brush to your Carbontec - Unger pole systems.

Adapter for UNGER - HiFlo CarbonTec Modular.

• Weight  280g
• Connection  M22 IG / M22 IG

• SOLAR ADAPTER SET - CARBONTEC  X1
• high-pressure hose DN 6, 25 m  X1
